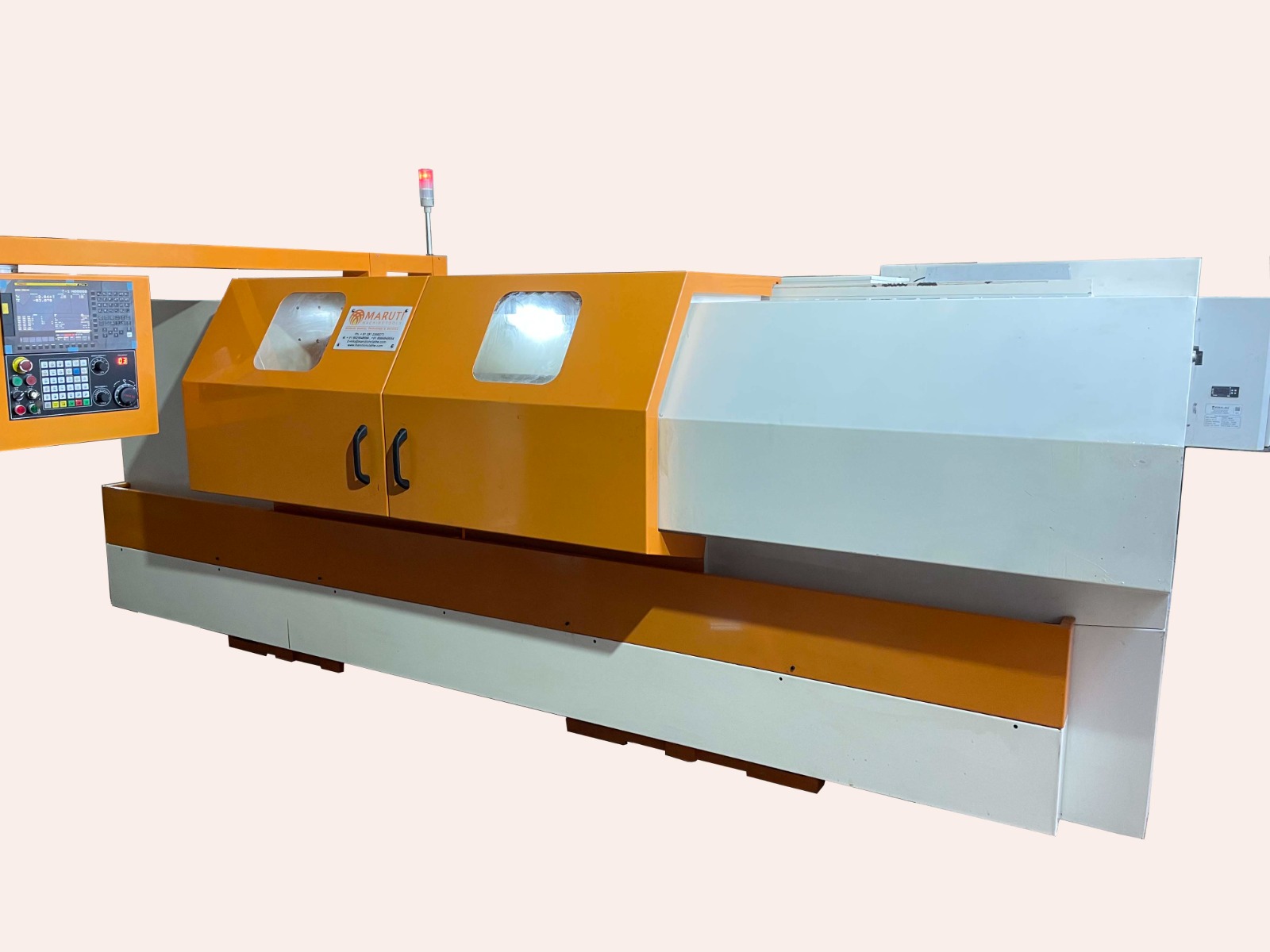

Micro Turn CNC Machine

Custom Built Micro Turn CNC Machine
MICRO TURN Specifications
SPECIFICATION MICRO TURN 165 / 300 MICRO TURN 200 / 300 MICRO TURN 200 / 800 MICRO TURN 200 / 600
Capacity :-
Swing Over Bed 375 500 500 500
Maximum Turning Length 300 300 800 600
Maximum Dia. Between Center 250 300 200 200
Distance Between Center 400 400 850 200
Standerd Turining Dia. 165 200 200 200
Chuck Size 165 200 200 200
Max. Turning Dia. 250 300 300 300
X - AXIS Travel 150 175 175 175
Z - AXIS Travel 350 350 850 650
Rapid Traverse 20
Slide :-
Z AXIS Boll Screw 32x10
Motor Torque (Z AXIS) 7NM
X AXIS Boll Screw 32x10
Motor Torque (X AXIS) 7NM
Main Spindle :-
Spindle Motor 5.5/3.5 5.5/3.5 11/7.5 11/7.5
Spindle Bore 38 38 55 55
Spindle Nose A2-5 A2-5 A2-6 A2-6
Maximum Bar Capacity 25 25 40 60
Spindle Speed Range 50-4000 50-4000 50-4000 50-3500
Full Power Speed Range 750-3500
Turret :-
Number of Station 8
Max. Boring Bar Dia. 32 32 32 38
Tool Size (Cross Section) 20x20 20x20 20x20 25x25
TailStock :-
Quill Dia. 85
Quill Stroke 120
Thrust (Adjustable) KGF 500
Others :-
Weight (Approx.) 3000 3000 3500 4200
Positioning Accuracy (Micron) 0.010
Repeatability (Micron) 0.005
Control FAGOR / Siemens
UPS Facility 1 KVA UPS

MICRO TURN Series – Specifications

MICRO TURN CNC Lathe

Select a model, then browse specifications

165 / 300
200 / 300
200 / 800
200 / 600
Common specs
165 / 300 specs unique
Slide
Rapid traverse20 m/min
Z-axis ball screw32×10
Motor torque (Z-axis)7 Nm
X-axis ball screw32×10
Motor torque (X-axis)7 Nm
Spindle
Full power speed range750 – 3500 RPM
Turret
Number of stations8
Tail Stock
Quill dia.85 mm
Quill stroke120 mm
Thrust (adjustable)500 kgf
Others
Positioning accuracy0.010 micron
Repeatability0.005 micron
ControlFAGOR / Siemens
UPS facility1 KVA UPS
165 / 300 – Capacity
Swing over bed375 mm
Max. turning length300 mm
Max. dia. between center250 mm
Distance between center400 mm
Standard turning dia.165 mm
Chuck size165 mm
Max. turning dia.250 mm
X-axis travel150 mm
Z-axis travel350 mm
165 / 300 – Spindle
Spindle motor5.5 / 3.5 kW
Spindle bore38 mm
Spindle noseA2-5
Max. bar capacity25 mm
Spindle speed range50 – 4000 RPM
165 / 300 – Turret
Max. boring bar dia.32 mm
Tool size (cross section)20×20 mm
165 / 300 – Others
Weight (approx.)3000 kg
200 / 300 – Capacity
Swing over bed500 mm
Max. turning length300 mm
Max. dia. between center300 mm
Distance between center400 mm
Standard turning dia.200 mm
Chuck size200 mm
Max. turning dia.300 mm
X-axis travel175 mm
Z-axis travel350 mm
200 / 300 – Spindle
Spindle motor5.5 / 3.5 kW
Spindle bore38 mm
Spindle noseA2-5
Max. bar capacity25 mm
Spindle speed range50 – 4000 RPM
200 / 300 – Turret
Max. boring bar dia.32 mm
Tool size (cross section)20×20 mm
200 / 300 – Others
Weight (approx.)3000 kg
200 / 800 – Capacity
Swing over bed500 mm
Max. turning length800 mm
Max. dia. between center200 mm
Distance between center850 mm
Standard turning dia.200 mm
Chuck size200 mm
Max. turning dia.300 mm
X-axis travel175 mm
Z-axis travel850 mm
200 / 800 – Spindle
Spindle motor11 / 7.5 kW
Spindle bore55 mm
Spindle noseA2-6
Max. bar capacity40 mm
Spindle speed range50 – 4000 RPM
200 / 800 – Turret
Max. boring bar dia.32 mm
Tool size (cross section)20×20 mm
200 / 800 – Others
Weight (approx.)3500 kg
200 / 600 – Capacity
Swing over bed500 mm
Max. turning length600 mm
Max. dia. between center200 mm
Distance between center200 mm
Standard turning dia.200 mm
Chuck size200 mm
Max. turning dia.300 mm
X-axis travel175 mm
Z-axis travel650 mm
200 / 600 – Spindle
Spindle motor11 / 7.5 kW
Spindle bore55 mm
Spindle noseA2-6
Max. bar capacity60 mm
Spindle speed range50 – 3500 RPM
200 / 600 – Turret
Max. boring bar dia.38 mm
Tool size (cross section)25×25 mm
200 / 600 – Others
Weight (approx.)4200 kg
